10kw 380V vertical axis wind generator with C type blades

Model Number : BF-C-10K

Top weight (kg) : 660kg

Output voltage : 220V/380V

Price : 10000$

Rotor diameter (m) : 6

Supply Ability : 500UNITS PER MONTH

Material : Q235&FRP

Height of blades : 6.6

Payment Terms : T/T,L/C

Working tempreture : -45-60℃

Rated rotor speed (m/s) : 100r/150R/min

MOQ : 1

Delivery Time : 25-30 DAYS

Speed regulation method : Electromagnetic control

Tower type : 133mm steel tube

Place of Origin : China

Rated wind speed(m/s) : 13

Packaging Details : PLYWOOD CASE

Survival wind speed(m) : 50

Certification : CE/ISO9001

Brand Name : BF

Start up wind speed(m) : 3.8m/s

Height of tower : 10M/12M

Material of blades and numbers : Glass fiber reinforce plastic/5

Contact Now

BF-C Series 10kW Vertical Axis Wind Turbine

Our BF-C-series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.

Key Features

High wind energy coefficient with low startup wind speed (3.8m/s)
Superior anti-wind capability and stable operation
Noise-free performance with maintenance-free design
Advanced anti-corrosion treatment and sealing for long service life
Captures wind from any direction without yaw mechanism
Ideal for urban and suburban environments with turbulent wind flows

Technical Specifications

Power	10KW
Rotor diameter	6m
Height of blade	6.6m
Material of blades and numbers	Glass fiber reinforce plastic/5
Rated rotor speed	150r/min
Output voltage	220V/380V
Start up wind speed	3.8m/s
Rated wind speed	13m/s
Work speed	3.8-25m/s
Security wind speed	50m/s
Height of tower	10m
Top weight except tower	660kg
Tower type	133mm steel tube
Wind energy utilized coefficient	30%-40%
Suggested batteries information	36pcs 12V 200AH
Speed regulation method	electromagnetic control
Range of working temperature	-45℃-60℃

Generator Body

Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.

10kw 380V vertical axis wind generator with C type blades

Blade Specifications

Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.

Wheel Hub & Connectors

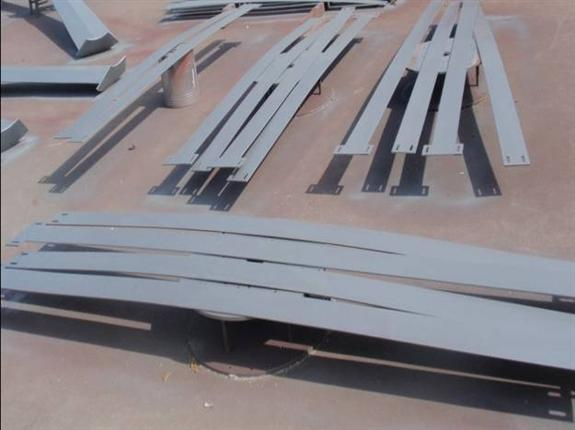

Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.

Tower Options

Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.

Off-grid Controller

Wind-solar hybrid controller which rectifies AC current generated by wind generator into DC current and charges the battery bank. Unload function activates when strong wind produces excess current. The controller brakes when batteries reach full capacity (125% voltage) and resumes charging when voltage reduces to 108%. Includes manual brake button for emergency stops. 10kw 380V vertical axis wind generator with C type blades

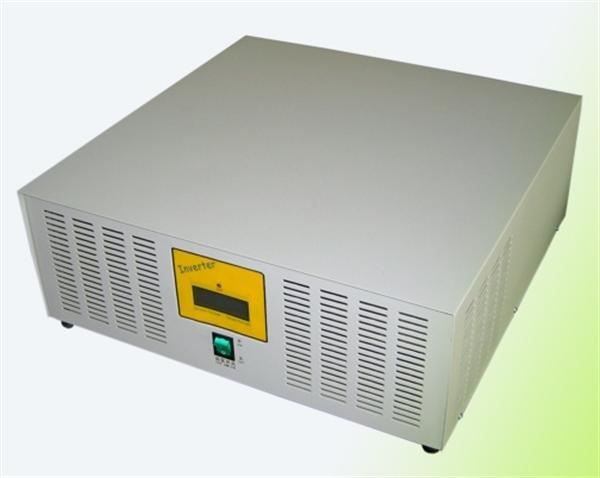

Off-grid Inverter

Pure sine wave output capable of driving any household appliances. Features integrated circuit design with minimal wiring connections. Utilizes microprocessor technology for enhanced system integration. Includes comprehensive protection systems with high efficiency transformer design and LCD operation status display.

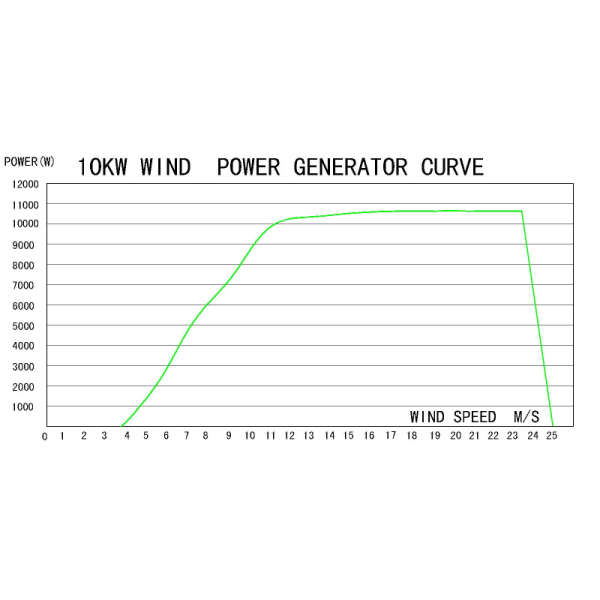

Performance Curves

Additional Technical Specifications

Generator Type: Permanent magnetic synchronous style
Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
Off-Grid System Requirements: 32 x 12V 100AH batteries (not included in base price)
Certifications: CE product certificate and ISO factory report
